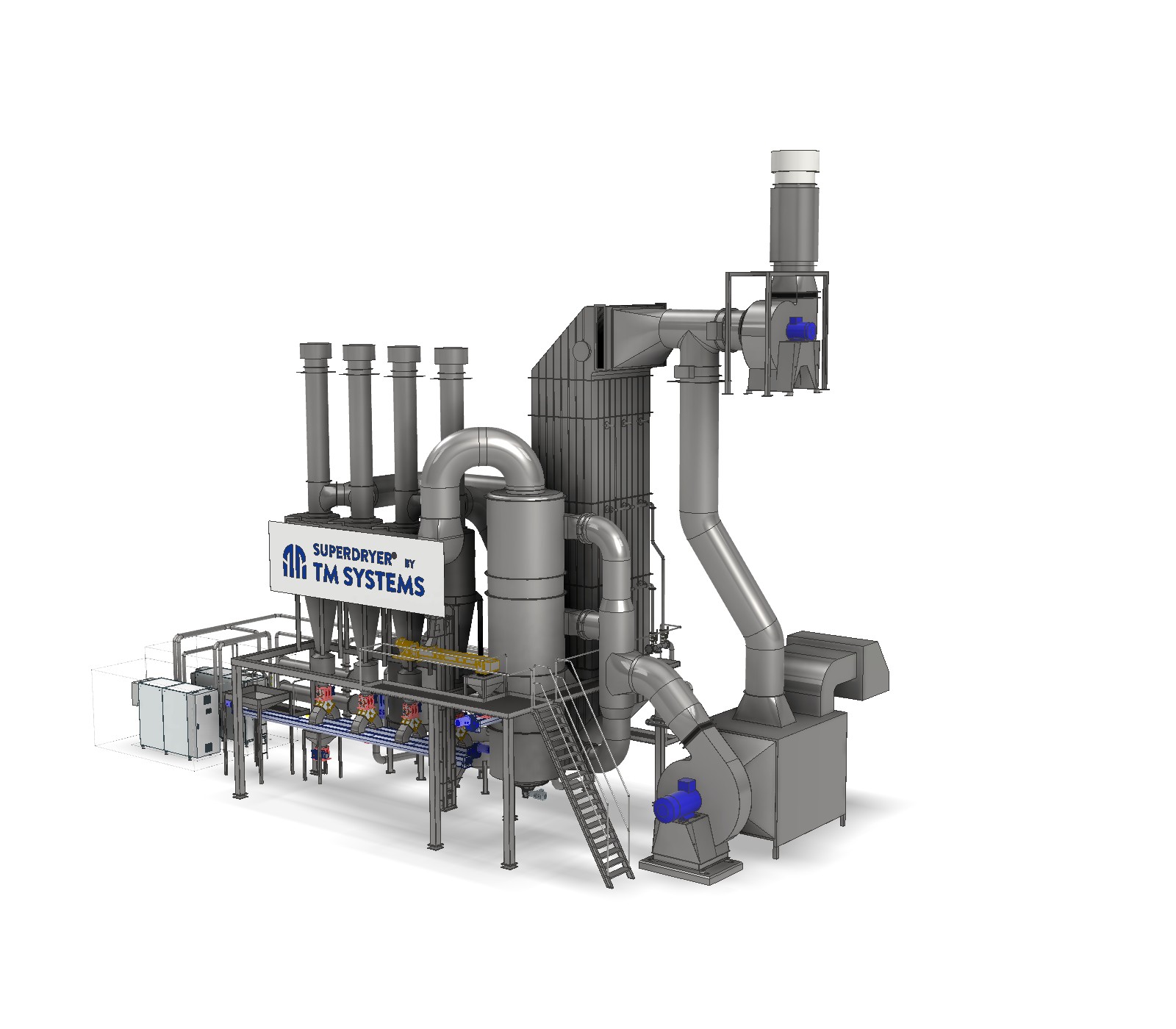

SUPERDRYER™ – A NEXT GENERATION HYBRID FLASH DRYER
SUPERDRYER™ – VERSATILE, HIGH-EFFICIENT DRYING TECHNOLOGY
SuperDryer™ is a highly advanced drying system designed to deliver exceptional efficiency and performance across a broad spectrum of industrial applications. By integrating core functionalities from multiple air-suspended drying technologies – including flash dryers, fluidized bed dryers, and whirl/spin flash dryers – SuperDryer™ offers a comprehensive and refined approach to convective drying.
SuperDryer™ serves as a highly adaptable and energy-efficient replacement for traditional belt and drum dryers. Its versatility makes it ideal for diverse industrial applications, providing improved operational flexibility, consistent and uniform drying results and reduced operating costs
INTELLIGENT MULTI-STAGE DRYING
SuperDryer™ delivers a significant leap in drying technology, outperforming conventional air-suspended systems through its advanced patented multi-stage design. Independent airflow control across multiple tower sections enables precise adjustment of:
- Particle residence time
- End product dryness levels (from 60% to 95%)
- Product outlet temperature
This intelligent approach ensures optimal drying performance tailored to your specific product requirements.
Enhanced Fluidization for Process Stability
SuperDryer™ features a dedicated bottom agitator designed to mechanically improve fluidization within the fluid bed zone. This enhancement promotes stable process conditions and ensures consistent performance, even under variable upstream operating scenarios.
VERSATILE DRYING FOR A WIDE RANGE OF MARTERIALS

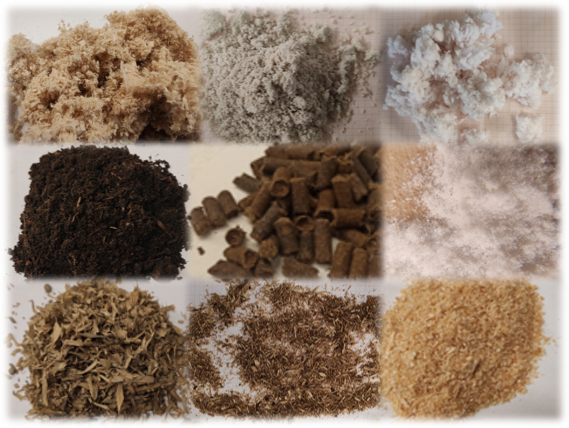

SuperDryer™ is engineered to handle a broad spectrum of feed types, including powders, filter cakes, free-flowing granular solids, fibrous materials, and slurries. Its adaptability makes it ideal for numerous industrial applications, such as:
- Recycled pulp
- Drying of MCC and CMC
- Fiber 2 X
- Bioenergy feedstocks
- Wood chips drying
- Saw dust drying
- Drying of fibrous sludges
- Slurries
- Drying of fruit peels & pulp
- Brew mash
- Bagasse drying
- Okara
- Tobacco
DRYING CAPACITY & ENERGY EFFIENCY
- Evaporation Capacity:
From 0.1 to 10 kg/s, adaptable to various processing needs. - Material Input Range:
Handles feedstock with 20% to 60% dry solids content. - Material Output Range:
Achieves final product dryness between 50% and 95% dry solids.
Energy Consumption:
- Thermal Energy: Approx. 700 kWh per ton of evaporated water
- Electricity Usage: Approx. 80 kWh per ton of evaporated water
KEY FEATURES AND ADVANTAGES
- Superior Drying Efficiency
Combines the best aspects of multiple dryer types to achieve faster and more uniform drying results. - Broad Application Range
Effectively handles granular materials across industries -from pulp and paper to food and bioenergy -replacing conventional belt and drum dryers. - Energy Savings
Optimized airflow and heat transfer reduce energy consumption, lowering operational costs. - Compact & Scalable Design
Space-efficient and easily scalable to meet production demands, whether for small batches or large-scale operations. - Minimal Maintenance
Robust construction and fewer moving parts mean reduced downtime and lower maintenance requirements.
KEY FEATURES AND ADVANTAGES
- Enhanced Product Quality
Gentle drying process preserves material integrity, improving final product consistency and value. - Emission-Free & Odorless Operation
Supports clean, sustainable processing environments with no harmful emissions or unpleasant odors. - Suitable for Greenfield & Retrofit Installations
Easily integrates into both new facilities and existing production lines. - Energy & Water Recapture
Recovers and reuses energy and water within your process, reducing waste and supporting circular economy goals. - Multiple Input Energy Sources
Various energy sources used can be used simultaneously including hot water, hot oil, electricity and steam for flexible and future-proof operation.

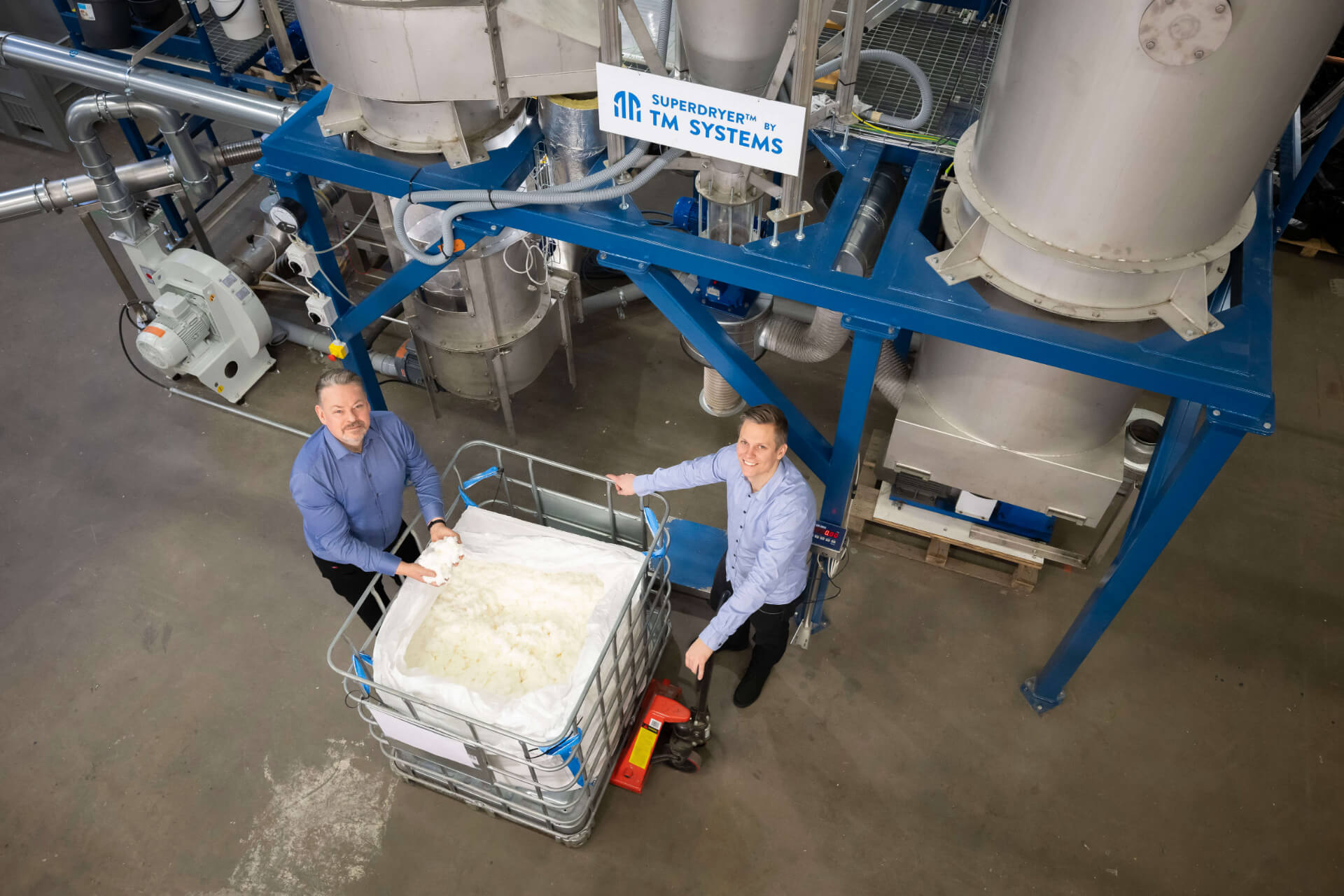

SUPERDRYER TEST FACILITY
A state-of-the-art demonstration and test facility is available for all customers for proof-of-concept drying tests and dry product evaluation purposes.
CONTACT US FOR MORE INFORMATION
Are you interested in discovering how our radically novel, energy-efficient, and, therefore, both economically and environmentally smart technology dries your materials? Or do you have a great product idea that requires drying?
We warmly invite you to learn more about our test facility in Turku, Western Finland.
This project is co-funded by the EIC Accelerator programme
TM Systems received substantial funding from the European Union for the full-scale commercial launch of SuperDryer™.

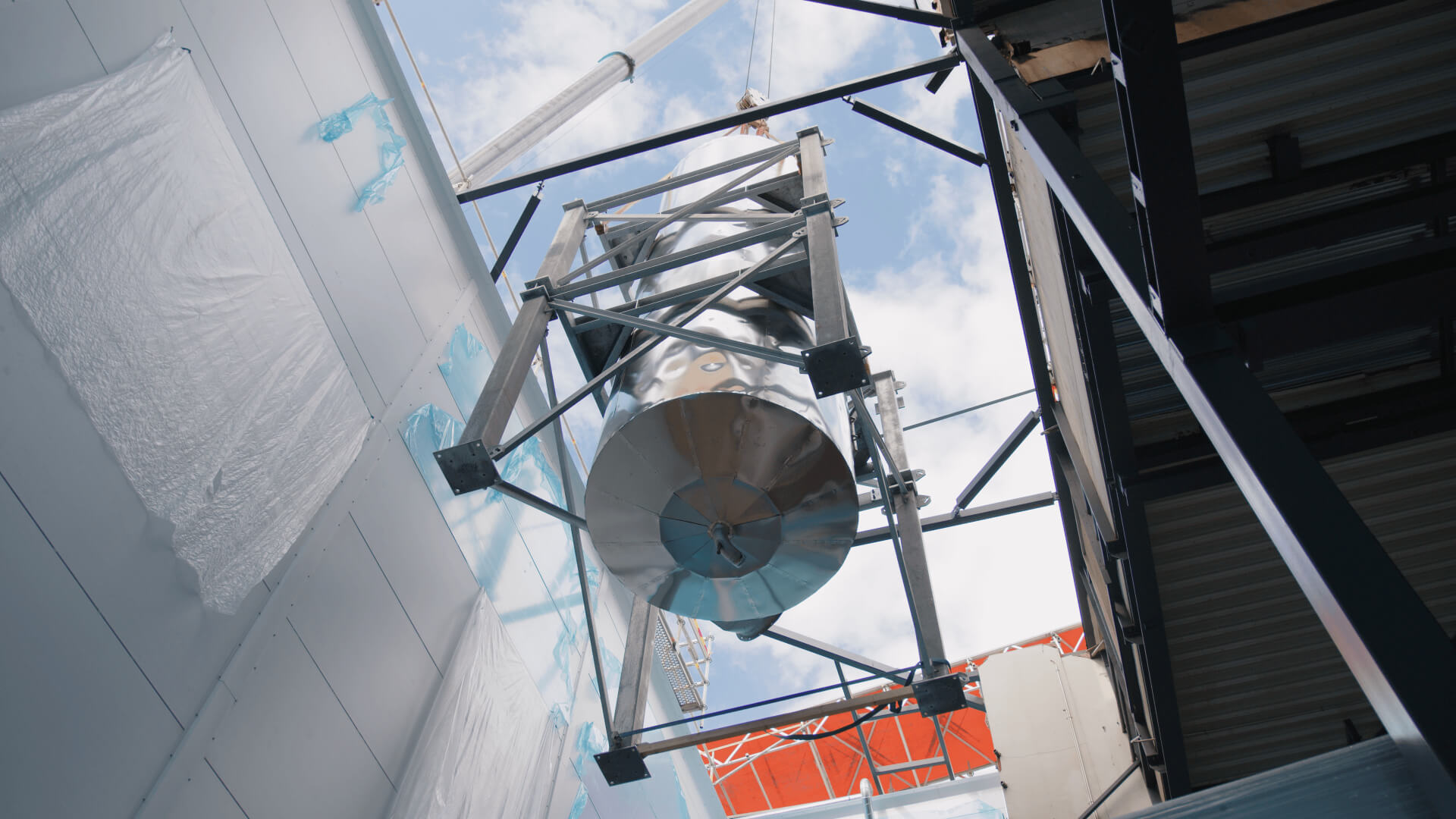

SUPERDRYER DELIVERY IN FINLAND
Watch our latest project video: TM Systems delivers SuperDryer to a Finnish biorefinery.
